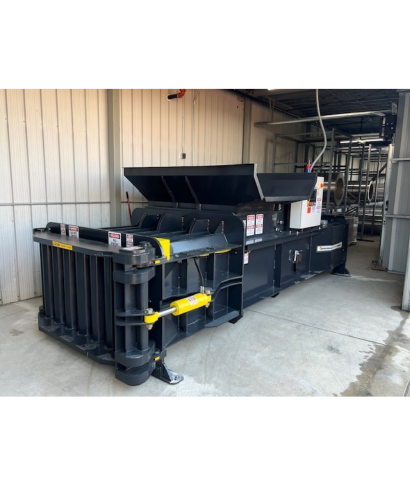

Harmony's HM-60NF Non-Ferrous Horizontal Baler is specifically designed to handle non-ferrous metals & other hard materials!

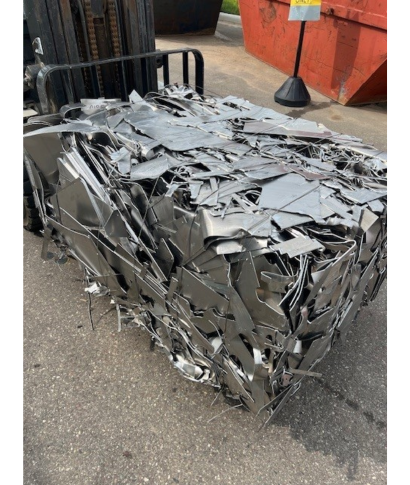

- Bale Size: 30" H x 60" L x up to 51" W
- Bale Weights:
- OCC: 1,500 lbs. (Long Stroke)
- Litho Plate: 2,600 lbs.
- Aluminum Cans: 700 lbs.
- Tin Cans: 1,250 lbs.
*(bale weights are approximate & may differ depending on moisture, material density and caps on PET bottles)
- Feed Opening: 54" x 40"
- Ram Force: 187,000 lbs.
- Volume: X-Large
Recyclable Materials: OCC, Litho Plate, Aluminum Cans, Tin Cans, & other non-ferrous metal applications!
Ideal For: Distribution centers, manufacturing facilities, and recycling centers.
Features of the HM-60NF Non-Ferrous Horizontal Baler:
- Large 54" × 40" Feed Opening For Dense Non-Ferrous Scrap
- 187,000 LBS. Of Ram Force For Higher Density Bales
- 3,800 PSI High Performance Hydraulic System
- Dual 5.5 Inch Bore × 90 Inch Stroke Cylinders
- AR400 Sidewalls, Top Plate & Floor
- 7 Section Removable Shear Blade Made Of Hardened Tool Steel
- Heavy Duty Interlocking Chassis Construction
- Hardened Wear Surfaces In High Impact Areas
- Automatic Material Retaining Dogs To Control Springy Scrap
- Full Eject System That Clears The Chamber After Each Bale
- Ability To Switch Materials Without Shutting Down
Benefits of the HM-60NF Non-Ferrous Horizontal Baler:
- UL® Listed Control Panel
- Remote Mounted Controls
- Low Oil & Hot Oil Shutdown Protection
- Automatic Bale Decompression
- Hydraulic Door Latch
- Option For Feed Conveyor Integration
- Meets Or Exceeds ANSI & OSHA Standards
HM-60NF Non-Ferrous Baler Feeding Options:
- Ambidextrous Hoppers
- Tippers
- Conveyor fed systems
For polyurethane foam and mattress applications, please be sure to visit our HM-60S Horizontal Stretch Baler product page. For a wide variety of recyclable commodities, including paper, plastics, magazines, tin cans, and HDPE, please visit our HM-60 Closed Door Manual Baler product page.
Contact Us Today!
Fill out this form to request a free quote, site review, or get more information.
***Specifications subject to change without notice
