C75

The C75 Compactor from Harmony Enterprises allows you to store waste in a liquid tight enclosure with the economy of a compactor!

The Model C75 is a full powered space saver measuring a mere 79″ in length. It saves valuable space on your property. The C75 can even be attached to a roll-off receiver box, or a front or rear loading receiver box. You owe it to yourself to look into this fine product from Harmony Enterprises.

Specifications subject to change without notice.

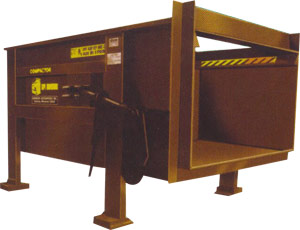

The C75 Stationary Compactor is a full powered space saver measuring a mere 79″ in length. It saves valuable space on your property. It can be attached to a roll-off receiver box or a front or rear loading receiver box.

Product Number: C75
Product Name: Stationary Compactor

The C75 is Ideal for:

  • Commercial Applications
  • Department Stores
  • Restaurants
  • Manufacturing Facilities
  • Motels/Hotels
  • Offices
  • And Many Other Industrial Applications

The C75’s Benefits:

  • Reduces waste disposal costs
  • Improves your business appearance and increases workplace safety
  • Saves labor and time making your operation more profitable

Charge Opening: 48″ x 32″ (1220mm x 813mm)

Ram Face: 47 3/4″ x 24″ with 3/8″ Plate (1213mm x 610mm w/10mm)

Floor: 3/8″ Plate (10mm)

Sides: 3/16″ Plate with 4″ Channels

Breaker Bar: 6″ x 6″ x 5/8″

Ram Penetration: @ 1800 25,000 lbs. (11,340Kg) (29.5 PSI)

Cylinder Time: 38 Seconds

Cylinder: Twin 3″(76mm) Bore, 32″ (812mm) Stroke

Motor: 2 HP

Pump: 5.5 GPM High/Low

Ram Penetration: 8″ (203mm)

Oil Capacity: 15 Gallons (57L)

Loading Height: 43″ (1090mm)

Overall Height: 49″ (1250mm)

Length: 79″ (2010mm)

Shipping Weight: 2,900 lbs. (1,315Kg)
