V84HD

The V84HD Vertical Baler is intended to bale recyclable materials including corrugated cardboard, newspapers, and high and low density recyclable plastics.

Vertical Baler V84 - HarmonyThe V84HD Vertical Baler Features:

  • Powerful Twin 6” Cylinders with Heavy Duty 3.5” Rods for Extra Long Life
  • Heavy Duty 20 Horsepower Motor for Extra Long Life
  • Unique Hydraulic Circuit for High Speed Applications
  • UL Listed Control Panel
  • Operates Under a 12 Foot Ceiling
  • Standard Retractable Bale Dogs for Maximum Material Containment
  • Standard Voltage Electrical Disconnect Included
  • Enclosed Counterbalance for Upper Door Lifting Ease
  • Dual Hydraulic Ejection for Extra Dense Bales
  • Stronger Heavy Duty Construction than Comparable Balers
  • No Fluffing of Material Necessary
  • Slots for Tying Bales
  • Meets or Exceeds All ANSI and OSHA Safety Standards

Specifications subject to change without notice.

The V84HD Vertical Baler is Ideal for:

  • Manufacturing Facilities
  • Industrial Applications
  • Recycling Applications
  • Distribution Centers

The V84HD Vertical Baler’s Benefits:

  • Reduces recycling disposal costs
  • Saves labor and time making your operation more profitable
  • Improves your business appearance and increases workplace safety

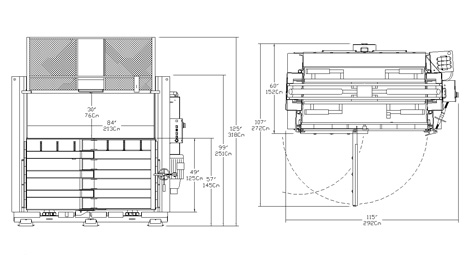

Bale Size: 48″ X 84″ X up to 48″

RAM Pressure: 127,235 lbs. Max

Cylinders: Two 6″ Bore, 3.5″ Rod, 28″ Stroke

Motor: 20 HP

Pump: 12 GPM

Electrical Power: 208/230/460 Volt, 3 Phase

Bale Ejection: Hydraulic / Chain

Bale Tying: Wire or Banding

Loading Door Opening: 30″ X 84″

Loading Door Height: 49″

Overall Height: 125″

Overall Depth: 60″

Overall Width: 115″

Depth with Door Open: 107″

Shipping Height: 99″
