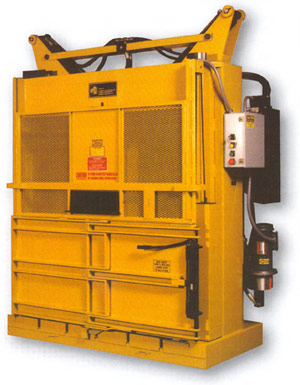

M60MD

Turn recycling into profit! The M60MD Vertical Baler by Harmony Enterprises is a safe and efficient state-of-the-art piece of equipment that means more profit and less recycling!

Vertical Baler m60md - HarmonyThe M60MD vertical baler…It’s just the ticket for solid recycling disposal. The M60MD is a big, high capacity vertical baler that fits under a standard ceiling. Try that with any machine that dares to compete.

The M60MD Vertical Baler Features

  • Safety
    Safety interlocks and shielding of all shear and pinch points makes the M60MD the safest 60″ vertical baler available today.
  • 700-800 Pound Corrugated Bales
    Practical 60″ bale size cubes out perfectly in trucks and rail cars. You can load a 30,000 pound truckload. Fast.
  • Simple Operation
    Loads, compacts, ties and hydraulically ejects bales from the front of the machine. Compression cycle is fully automatic.
  • Inexpensive, Easy Installation
    The M60MD vertical baler is shipped upright for easy unloading and placement at the work site. Its compact dimensions mean this machine can operate under a standard 8 foot ceiling.
  • Energy Efficient Two Stage Pump
    This pump provides maximum compaction pressure and rapid operating cycles with minimum horsepower.
  • Reliable Hydraulics
    A Harmony Enterprises designed control valve eliminates jarring hydraulic shock which shortens the life of lesser machines.
  • Durability
    Physical durability is assured through solid construction. “I” beams and heavy channel are used where others may use thin gauge sheet metal.
  • Safe
    Photo electric eye is standard on the M60MD Vertical Baler. This provides a fail safe operation of the Ram/Loading door.

Specifications subject to change without notice.

A Manual, Door down stroke baler, used for baling recyclable materials such as: Corrugated Cardboard, Foam, Shrink Wrap, Films and other solids. The M60MD is ideal for: Shopping Centers, Super Markets, Hotels/Motels, Hospitals/Nursing Homes, Military Bases, Department Stores and many other Industrial/Commercial applications.

The M60MD Vertical Baler is Ideal for:

  • Shopping Centers
  • Super Markets
  • Hotels/Motels
  • Hospitals
  • Industrial/Commercial Applications
  • The Military
  • Department Stores
  • And Many Other Applications

The M60MD Vertical Baler’s Benefits:

  • Space Saving low profile operates under a standard 8 foot ceiling
  • Easy to Operate

M60MD Vertical Baler Sell sheet

Bale Size: 30″ x 60″ x up to 30″ High (762mm x 1520mm up to 762mm)

Bale Pressure: 57,805 lbs. (26,221 kg)

Bale Weight (Corrugated Cardboard): 00-800 lbs. (318-408 kg)

Motor 3PH. 3450 RPM 208/230/460V Energy Efficient: 5 HP

Cycle Time: 33 seconds

Pump: Two Stage

Shipping Height: 81.5″ (2070mm)

Loading Door Opening: 24″ x 60″ (610mm x 1520mm)

Unloading Door Height: 39″ (990mm)

Operating Height: 95.75″ (2430mm)

Overall Depth: 37″ (940mm)

Depth with Door Open: 73″ (1855mm)

Overall Width: 78″ (1980mm)

Shipping Weight: 4,237 lbs. (1,922kg)

Shipping Height: 81.5″ (2070mm)

Required Operating Area: 39.5 sq. ft. (3.7 sq. meters)
