M48MP

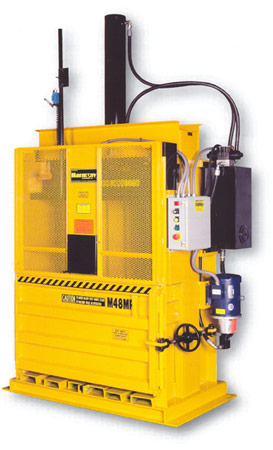

The M48MP Vertical Baler, setting the standard for performance and value.

Vertical Baler m48mp-HarmonyWhen floor space or ceiling height is limited, this is the product for you. With the power of larger machines incorporated into this compact design, the M48MP Mid Profile Vertical Baler handles all your recycling needs with ease. This unit needs can produce bale weights of up to 400-500 lbs in a fast 23 second cycle time. It is designed for safe, one-person operation. Reduce your recycling disposal costs and save money.

Specifications subject to change without notice.













The M48MP Vertical Baler is Ideal for:

  • Recycling Centers
  • Transfer Stations
  • Super Markets
  • Hotels/Motels
  • Department Stores
  • Manufacturing Facilities
  • Colleges or Universities
  • Military Bases
  • Industrial/Commercial Sites
  • Shopping Centers

The M48MP Vertical Baler’s Benefits:

  • Fits into tight spaces and low ceilings other balers cannot
  • Reduces recycling disposal costs
  • Improves your business appearance and increases workplace safety
  • Saves labor and time making your operation more profitable

Vertical Baler sell sheet

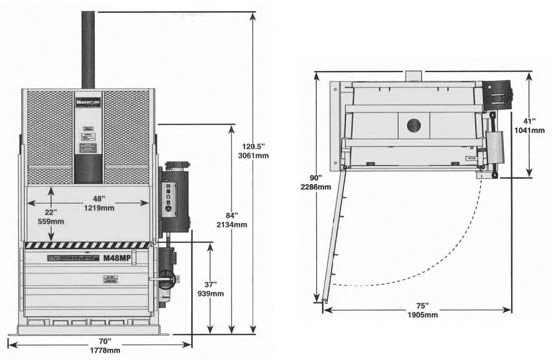

Bale Size: 30″ x 48″x up to 30″ (762mm x 1219mm x 762mm)

Bale Weight – Corrugated: Up to 500 lbs. (181kg)

Ram Pressure: 36,580 lbs. (16,593kg)

Cycle Time: 23 seconds

Cylinder: 4.5″ bore, 3″ rod, 40″ stroke

Motor: 5 HP

Pump: Two Stage

Electrical Power: 208/230/460V-3PH-60Hz

Bale Ejection: Hydraulic

Bale Tying: Wire or Banding

Loading Door Opening: 22″x 48″ (559mm x 1219mm)

Unloading Door Height: 37″ (939mm)

Overall Height: 120.5″ (3061mm)

Overall Depth: 41″ (1041mm)

Overall Width: 70″ (1778mm)

Depth with Door Open: 90″ (2286mm)

Width with Door Open: 75″ (1905mm)

Shipping Height: 84″ (2134mm)

Shipping Weight: 2,900 lbs. (1,315 kg)

Required Operating Area: 38 sq. ft. (3.53 sq. meters)
