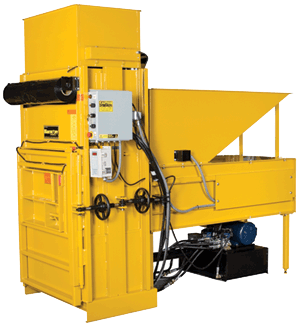

C36RC

Product Number: C36RC
Product Name: Indoor Power Packer

The C36RC is Ideal for:

• Office Development
• Hotels/Motels
• Hospitals/Nursing Homes
• Restaurants
• Department Stores
• And Many Other Industrial/Commercial Applications

The C36RC ’s Benefits:

• Dramatically lowers hauling costs
• Improves your business appearance and increases workplace safety
• Saves labor and time making your operation more profitable
• Cuts down on potential fire hazards

C36RC

Cube Size: 9 Cubic Feet

Cube Weight: Up to 350 lbs.

Main Ram Pressure: 41,353 lbs.

Rear Chute Ram Pressure: 32,674 lbs.

Hydraulic Eject Ram Pressure: 14,137 lbs.

Cycle Time: 36 seconds

Main Cylinder: 4.5” Bore, 3” Rod, 33” Stroke

Rear Chute Cylinder: 4″ Bore, 2” Rod, 30.25” Stroke

Hydraulic Eject Cylinder: 3” Bore, 2” Rod, 28” Stroke

Motor: 5 HP TEFC

Pump: Two Stage

Electrical Power: 230 Volt, 1 Phase, 60Hz

Cube Ejection: Hydraulic

Cube Tying: Bag

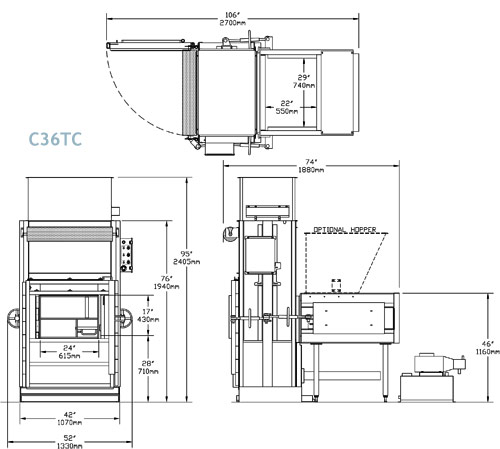

C36TC

Cube Size: 9 Cubic Feet

Cube Weight: Up to 350 lbs.

Main Ram Pressure: 41,353 lbs.

Rear Chute Ram Pressure: 36,758 lbs.

Hydraulic Eject Ram Pressure: 14,137 lbs.

Cycle Time: 29 Seconds

Main Cylinder: 4.5” Bore, 3” Rod, 33” Stroke (twin)

Rear Chute Cylinder: 4″ Bore, 2” Rod, 30.25” Stroke

Hydraulic Eject Cylinder: 3” Bore, 2” Rod, 28” Stroke

Motor: 5 HP TEFC

Pump: Two Stage

Electrical Power: 230 Volt, 1 Phase, 60Hz

Cube Ejection: Hydraulic

Cube Tying: Bag
