SSHB

With the SSHB you have acquired a state-of-the-art baler that sets new standards. This baler gives you plenty of functionality and a broad range of baling and extracting options, along with a wide array of expansion options.

Specifications subject to change without notice.











The SSHB baler gives you plenty of functionality and a broad range of baling and extracting options, along with a wide array of expansion options. The SSHB baler features a host of standard and cutting edge technology along with extreme high pressure crushing capability to extract and bale for the most demanding conditions.

Product Number: SSHB
Product Name: Stainless Steel Horizontal Baler

The SSHB Benefits:

  • Heavy duty stainless steel baling chamber, platen and charge opening
  • 207 gallon stainless steel liquid reservoir assembly with custom 2PC straining screen system to catch debris.
  • Custom designed stainless steel splash guards, safety covers and power unit weather cover that have a peaked design to allow for liquid run off.
  • All electrical enclosures are stainless steel NEMA 4 rated and all fittings and conduit are non corrosive plastic water tight rated.
  • All electrical items are OEM off-the-shelf by design so not waiting around for special orders on replacement items if needed.
  • Forty point I/O MICRO LOGIX1200 PLC from ALLEN BRADLEY with expandable I/O capability.
  • Water proof ultrasonic sensors to monitor charge chamber filling and cycle start operations. No troublesome photo eyes to clean or service.
  • Water proof magnetically coded safety switches to monitor all gates and doors.
  • Water proof proximity switches to monitor ram locations. No limits switch arms or rollers to keep readjusting.

Baler Weight: 7600 lbs.

Tipper Weight: 3360 lbs.

System Total Force: 96,215 lbs.

Platen Total Force: 190lbs/psi

Platen Penetration: Full

Platen Cycle Time: 35 to 45 seconds

System Pressure (main): 2500 psi

System Pressure (secondary): 2500 psi

Pump (main): 16gpm, Fixed Valve

Pump (secondary): 3.7gpm, Fixed Valve

Hydraulic Circuit (main): Regenitive Variable Speed

Hydraulic Circuit (secondary): Standard Variable Speed

Total System Volume: 38 gallons, 144liters

Oil Reservoir Volume: 27gallons, 103liters

Platen Cyclinder: ( B x R x S ) 7” x 4” x 54”

Latch Cylinder: ( B x R x S ) 3” x 1.5” x 16.25”

Tipper Cylinder: ( B x R x S ) 3” x 1.5” x 16.25”

Bale Dimensions: 18.5” x 30” x 30”

Bale Volume: 9.5 cu.ft

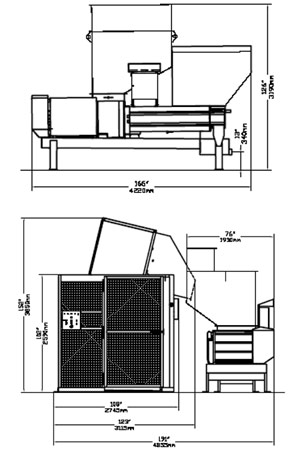

Baler Dimensions: 126” x 76” x 166”

Baler Operating Area: 175 sq.ft.

Tipper Dimensions: 105” x 108” x 73”

Tipper Operating Area: 100 sq.ft.
