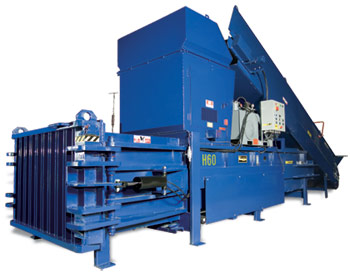

H60XL

The H60XL offers all the features you would expect from a Multi Material baler making extremely dense, mill ready bales of cardboard, plastic and non-ferrous metals, reducing shipping and handling costs. Loaded with features, and built to provide years of durable service in the harshest environments, the H60XL increases your productivity and your bottom line. The H60XL Horizontal baler with Semi-Automatic Wire Feed (patent approved), yet another industry exclusive from Harmony Enterprises.

Product Number: H60XL
Product Name: H60XL Horizontal Baler

The H60XL is ideal for:

• Distribution Centers
• Beverage Facilities
• Manufacturing Facilities
• Recycling Centers
• Scrap Yards

The H60XL Benefits:

• Offers 50% Less tying time with NO wire guides
• Increases recycling revenue
• Reduces recycling disposal costs
• Improves your business appearance and increases workplace safety
• Increases profitability and increases labor efficiency

Bale Size: 30” X 60” X up to 48” (762 mm x 1524 mm x up to 1219 mm)

Bale Weight – Cardboard: 1,000 -1,200 Pounds (454 Kg - 544 Kg)

Ram Force: 150,800 Pounds (68,402 Kg)

Cycle Time: 48 seconds

Cylinder: 8” (203 mm) Bore, 5” (127 mm) Rod, 106” (2,692mm) Stroke

Motor: 20 HP, TEFC

Pump: Heavy Duty Piston

Electric Power: 208/230/460 Volt, 3 Phase, 60 HZ

Bale Tying: Wire

Bale Ejection: Hydraulic

Overall Height w/out hopper: Varies depending upon order options

Overall Length: Varies depending upon order options

Overall Width: 111” (2815 mm)

Charge Chamber Opening: 53.5” x 52.5” (1,359 mm x 1,334 mm)

Shipping Height: Varies depending upon order options

Actual Height: 20,000 Pounds (9070 Kg)

Required Installation and Operating Area: 230 Square Feet (22 Square Meters)
