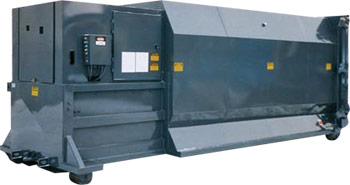

Self-Contained

Self-Contained Compactors are built to provide years of reliable, maintenance free service.

Self-Contained Compactors are the ideal solution for areas where sanitation and neatness are of the highest importance. Motels, quick serve chains, department stores, clinics, and nursing homes have all found the benefits of the Self-Contained Compactors. These machines are perfect for confined areas where space is a concern.

Self-contained Compactors are built from prime high quality steel plate and structural steel channel and tubing. These are the highest quality totally UL listed self-contained compactors in the industry to fit virtually any application. They have the most advanced electrical and hydraulic system in the industry, along with the lowest maintenance cost design in the industry. All moving parts having grease fittings. These containers are built to provide durability, reliability with many years of maintenance free service.

Self-Contained Compactors are manufactured in a number of sizes, ranging from 9 cubic yards all the way up to 40 cubic yards, and lengths from 13’ to 26’.

 Model Cu. Yds.
HEI-50-9  9
HEI-100-10 10
HEI-100-15 15
HEI-200-15 15
HEI-200-20 20
HEI-200-30 30
HEI-200-35 35
HEI-200-40 40



Options:

  • 220V, 7 1/2 HP, IPH
  • Fluid Reservoir Heater
  • Low Oil Sensor
  • Enclosed Doghouse with Door and Interlock
  • Walk-On or Drive-On Deck with 42″ Safety Rails
  • Side Loading Hoppers
  • Through-the-Wall Chutes
  • Cart Dumper System
  • Container Guide Rails
  • Open Hopper
  • Loading Dock and Ground Loading

Specifications subject to change without notice.

Product Number: Self-Contained Compactors
Product Name: Roll-off Compactors

The Self-Contained is Ideal for:

  • Hotels/Motels
  • Convenience Stores
  • Hospitals/Nursing Homes
  • Restaurants
  • Department Stores
  • And Many Other Commercial Applications

The Self-Contained’s Benefits:

  • Safe/Simple Operation
  • Requires little floor space
  • Reduces waste disposal costs
  • Improves your business appearance and increases workplace safety
  • Saves labor and time making your operation more profitable
  • Broadcast messages with the optional Programming System

Overall Length: 258″ (6807mm)

Overall Width: 101″ (2565mm)

Overall Height: 108″ (2743mm)

Container Capacity: 30 Cubic Yards

Compactor Capacity: 2 Cubic Yards

Platen Area: 60″ X 44″ X 36″ (1524mm X 1118mm X 914mm)

Charge Opening: 42″ X 60″ (1067mm 1524mm)

Ram Penetration: 12″ (305mm)

Twin Cylinders: 4″ X 42″ X 2.5″ (102mm X 1067mm X 64mm)

Line Pressure: 2,000 PSI

Ram Force: 2,500 PSI

Cycle Time: 63,000 lbs. (28,576Kg)

Fluid Capacity: 25 Gallons (95L)

Pump: 10.5 GPM

Motor: 208/230/460, 10HP, 3PH

Approx. Weight: 10,700 lbs. (4,853Kg)
