RotoPack

Reduce bulky waste in open containers with Harmony Enterprises RotoPack Compactors.

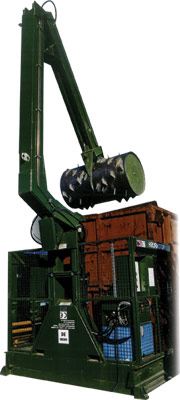

The RotoPack’s motorized roller is suspended from its crane arm and then lifted and lowered into the container by its integral hydraulic cylinder. The heavy duty steel roller is set in motion rolling back and forth over the waste in the container.

Specially designed steel teeth combined with the weight of the roller and crane arm, help to achieve the dramatic waste reduction of this heavy duty waste material.

RotoPack Compactors are ideal for reducing bulky waste in open containers and are already used on many civic amenity and heavy industrial sites throughout the UK. They are available with static, swivel, or traversing options and can therefore be used to compact waste in more then one container if required.

MEETS ANSI STANDARD Z245.1.
Specifications subject to change without notice.



Product Number: RotoPack
Product Name: Compactor

The RotoPack is Ideal for:

  • Civic Amenities
  • Heavy Industrial Sites

The RotoPack’s Benefits:

  • Reduces waste disposal costs
  • Improves your business appearance and increases workplace safety
  • Saves labor and time making your operation more profitable
  • Ability to compact waste in more then one container

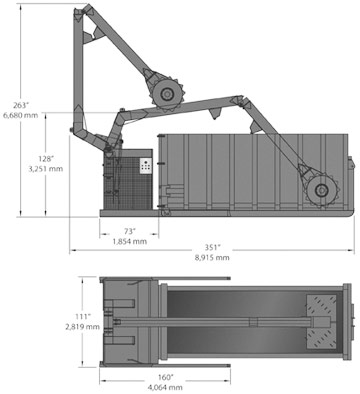

Required Headroom: 267 3/4″ (3800mm)

Roller Travel Limit: 259 7/8″ (6600mm)

Overall Space Required Container Length: 80″ (+2030mm)

Max. Container Width: 103 1/2″ (2630mm)

Distance Between the Forklift Pockets: 44 1/2″ (1130mm)

Roller Width: 67″ (1700mm)

Roller Diameter: 45 1/4″ (1150mm)

Roller Weight: 2601 lbs. (1.2 Tonnes)

Total Weight: 7077 lbs. (3.26 Tonnes)

Motor Size: 10 HP (5.5 kW)

Power Supply: 32 AMPS

Min Level of Waste: 19 3/4″ (500mm)
