C300XHD

When your needs are: performance, versatility, reliability, and value. Nothing measures up to the C300XHD Stationary Compactor.

The C300XHD isn’t just another stationary compactor. Like all other Harmony Enterprises balers and compactors it is designed, built and backed by the best in the business with more than 35 years experience Harmony Enterprises is the leader. The C300XHD meets all national electrical codes and the electrical system carries the UL Label. The C300XHD’s rugged construction and versatility allow the user to tailor it to his or her specific needs. The C300XHD is ideal for commercial and medium industrial situation. It leads the industry with features such as: a large 60″ x 60″ charge opening, comes standard with a 15HP TEFC motor, and has a stunning 67,800 pounds of compaction force. It can be configured with different power sources, hoppers, and walk-on ramps.

If your looking for; high efficiency, the best value and total reliability, look to the leader in Solid Waste Reduction. Look to Harmony Enterprises.

MEETS ANSI STANDARD Z245.1.
Specifications subject to change without notice.

When your needs are for value, performance, versatility and reliability, nothing measures up to our C300XHD stationary compactor. The C300XHD leads the industry with features such as: a large 60″ x 60″ charge opening, 20HP TEFC motor, and a stunning 92,300 lb compaction force.

Product Number: C300XHD
Product Name: Stationary Compactor

The C300XHD is Ideal for:

  • Offices
  • Hotels/Motels
  • Manufacturing Facilities
  • Hospitals
  • Chain Stores
  • Restaurants
  • Department Stores
  • Many Other Industrial/Commercial Applications

The C300XHD’s Benefits:

  • Reduces waste disposal costs
  • Loaded with extra features not found in comparable stationary compactors
  • Improves your business appearance and increases workplace safety
  • Saves labor and time making your operation more profitable

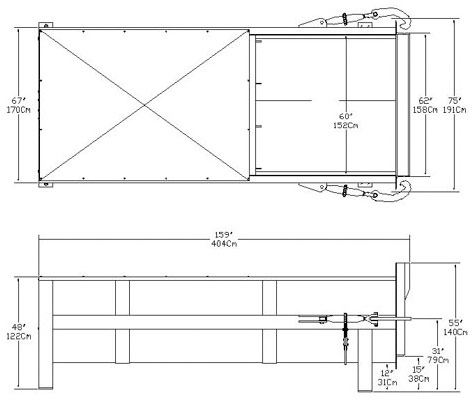

Charge Opening: 60″ x 60″ (1525mm x 1525mm)

Ram Face: 59 3/4″ x 29″ with 1/2″ Plate (1518mm x 737mm x 13mm)

Floor: 1/2″ Plate (13mm)

Sides 1/4″ Plate: 6″ Channel

Breaker Bar: 6″ x 6″ x 5/8″ Boxed Angle

Ram Penetration: 12″ (305mm)

Cylinder: 7″ (178mm) Bore, 72″ (1829mm) Stroke

Ram Force: 92,300 lbs. Max (41,867Kg) (54.0 PSI)

Cycle Time: 67 Seconds

Motor: 20HP 208/230/460Volt, TEFC

Pump: 16 GPM

Oil Capacity: 60 Gallons (227L)

Loading Height: 48″ (1220mm)

Overall Height: 55″ (1400mm)

Length: 159″ (4040mm)

Width: 75″ (1919mm)

Shipping Weight: 6000 lbs.(2,722Kg)
