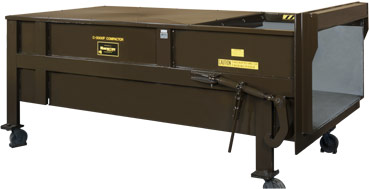

C200XP

The C200XP is a prime example of what stationary compactors should be. After all, they come from Harmony Enterprises, the world leader in solid waste and recycling equipment for over 35 years.

The rugged yet versatile C200 series is ideal for many of your stationary compacting needs. From landfills to supermarkets the C200 can save you headaches and money. The C200′s rugged construction and versatility allow you to match these machines to your specific needs.

With all models you can opt for; different power supplies, hoppers, walk-on ramps and other features that will satisfy your needs. Harmony Enterprises, we’ve written the book on solid waste and recycling equipment and it shows.

The C200XP… Light Years Ahead

  • Non-stick Nylatron Ram Guide System
  • UL Listed Control Panel
  • Only the Best Allen-Bradley Electrical Components
  • All Steel Plate Construction. No Thin Gauge.

Options

  • Enclosed Doghouse with Door and Safety Interlock
  • Rear or Side Load Hopper (With 42″ Lip, Railings and Walk-On Ramp)
  • Remote Control
  • Reservoir Oil Heater
  • Power Unit Weather Cover
  • 10 HP Single Phase Motor & Pump Assembly
  • And More (Inquire)

Specifications subject to change without notice.

The rugged yet versatile C200XP is ideal for many of your stationary compactor needs. A generous 22″ of ram penetration clears chutes and charge chambers, yet allows you to increase load weights while reducing messy fallout when the container is hauled. From landfills to supermarkets the C200XP is a money maker for your waste handling efforts. The C200XP is ideal for: Offices, Motels/Hotels, Manufacturing Facilities, Hospitals, Chain Stores, Restaurants, Department Stores and many other industrial/commercial applications.

Product Number: C200XP
Product Name: Stationary Compactor

The C200XP is Ideal for:

  • Offices
  • Hotels/Motels
  • Manufacturing Facilities
  • Hospitals
  • Chain Stores
  • Restaurants
  • Department Stores
  • Many Other Industrial/Commercial Applications

The C200XP’s Benefits:

  • Reduces waste disposal costs
  • Loaded with extra features not found in comparable stationary compactors
  • Improves your business appearance and increases workplace safety
  • Saves labor and time making your operation more profitable

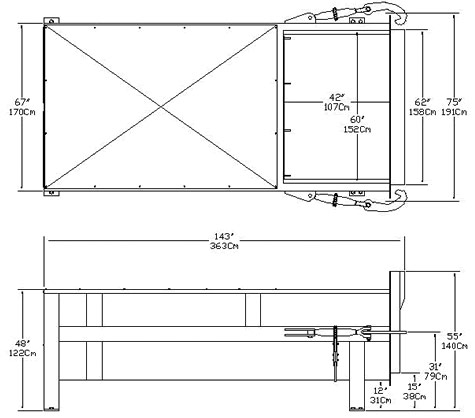

Charge Opening: 60″ x 42″ (1525mm x 1070mm)

Floor: 1/2″ Plate (13mm)

Ram Face: 59 3/4″ x 29″ with 1/2″ Plate (1518mm x 737mm x 13mm)

Sides 1/4″ Plate: 3/16″ Plate w/ 6″ Channels

Breaker Bar: 6″ x 6″ x 5/8″ Boxed Angle

Ram Penetration: 22″ (560mm)

Cylinder: 6″ (152mm) Bore, 3.5″ (77mm) Rod, 66″ (1676mm) Stroke

Ram Force: 67,800 lbs. (30, 754 Kg) (39.2 PSI)

Cycle Time: 58 Seconds

Motor: 15 HP 208/230/460Volt, TEFC

Pump: 12 GPM

Oil Capacity: 60 Gallons (227L)

Loading Height: 48″ (1220mm)

Overall Height: 55″ (1400mm)

Length: 143″ (3632mm)

Width: 72.5 (1841mm)

Shipping Weight: 5100 lbs. (2313 Kg)
