C200TC

The C200TC Compactor from Harmony Enterprises allows you to store waste in a liquid tight enclosure with the economy of a compactor!

The Model C200TC is a full powered space saver measuring a mere 84″ in length. It saves valuable space on your property. The C200TC can even be attached to a roll-off receiver box, or a front or rear loading receiver box. You owe it to yourself to look into this fine product from Harmony Enterprises.

Specifications subject to change without notice.

The C200TC Stationary Compactor is a full powered space saver measuring a mere 79″ in length. It saves valuable space on your property. It can be attached to a roll-off receiver box or a front or rear loading receiver box.

Product Number: C200TC
Product Name: Stationary Compactor

The C200TC is Ideal for:

  • Commercial Applications
  • Department Stores
  • Restaurants
  • Manufacturing Facilities
  • Motels/Hotels
  • Offices
  • And Many Other Industrial Applications

The C200TC’s Benefits:

  • Reduces waste disposal costs
  • Improves your business appearance and increases workplace safety
  • Saves labor and time making your operation more profitable

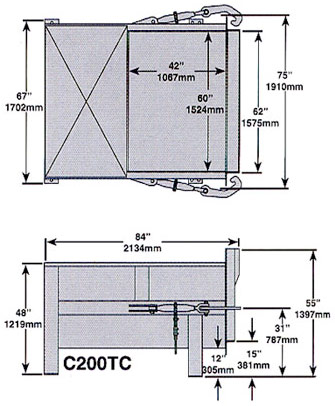

Charge Opening: 60″ x 42″ (1524mm x 1067mm)

Chamber Capacity: 2 Cubic Yards

Ram Face: 59 3/4″ x 29″ with 1/2″ Plate (1518mm x 737mm x 13mm)

Floor: 1/2″ Plate (13mm)

Sides 1/4″ Plate: 6″ Channels (150mm)

Breaker Bar: 6″ x 6″ x 5/8″ Boxed Angle

Ram Penetration: 12″ (305mm)

Twin Cylinders: 4″ (102mm) Bore, 2.5″ (64mm) Rod, 42.25″ (1073mm) Stroke

Ram Force @ 2000: 50,265 lbs. (22,800 Kg)

Cycle Time: 38 Seconds

Motor: 10 HP 208/230/460Volt, TEFC

Pump: 12 GPM

Oil Capacity: 30 Gallons (114L)

Loading Height: 48″ (1220mm)

Overall Height: 55″ (1400mm)

Length: 84″ (2134mm)

Width: 75″ (1910mm)

Shipping Weight: 4,350 lbs. (2,259 Kg)
