S60XDRC

The System Seven Sixty (S60XDRC) gives you versatility and high capacity all in one. With it’s rear hopper/conveyor system, it takes care of the big jobs fast.

The S60XDRC Vertical Baling System from Harmony Enterprises offers a unique combination of power and flexibility for any large recycling operation. The large 7″ cylinder, 96,000 lb. ram pressure, 42 second cycle time, coupled with its rear hopper and conveyor, makes this system stand out its class. In fact, the S60XDRC is in a class by itself. It has the power and capacity to quickly and efficiently bale a large variety of materials. It can handle plastic bottles, steel cans, aluminum cans, and other recyclable materials. The versatility of this machine offers you the option to manually feed various materials through the front door. The incredible density achieved by the S60XDRC gives the operator consistent, high quality, heavy bales without preconditioning. The resulting bale brings you a higher market value saving space, money, and transportation costs.

Extra density rear chute down stroke baler, used for baling recyclable materials such as: Corrugated Cardboard, PET Plastic, Steel Cans, Aluminum Cans and other recyclable materials. It is designed for many years of reliable, trouble free service. With its’ rear hopper and conveyor loading system the S60XDRC saves labor and preparation time, making operation more profitable for the user. The S60XDRC is ideal for: Recycling Centers, Transfer Stations, Super Markets, Hotels/Motels, Department Stores, Manufacturing Facilities, Colleges or Universities, Military Bases, Shopping Centers and many Industrial/Commercial applications.

Product Number: S60XDRC
Product Name: Vertical Baler (Automatic)

The S60XDRC is Ideal for:

  • Recycling Centers
  • Transfer Stations
  • Super Markets
  • Hotels/Motels
  • Department Stores
  • Manufacturing Facilities
  • Colleges or Universities
  • Military Bases
  • Industrial/Commercial Sites
  • Shopping Centers

The S60XDRC’s Benefits:

  • Loaded with extra features not found in competitive balers
  • Designed for years of reliable, trouble free service
  • Saves labor and preparation time, making your operation more profitable

Baler

Bale Size: 30″ x 60″x up to 51″ (76cm x 152cm x 130cm)

System Pressure: 2,500 PSI

Ram Pressure: 92,360 lbs. (41,894 Kg)

Cycle w/ Regen Time: 40 Seconds

Cylinder: 7″ Bore, 64″ Stroke

Motor: 20 hp, 1750 rpm, 3 Phase

Oil Reservoir: 30 Gallons

Pump: 16GPM

Electrical Power: 208/230/460 Volt, 3 Phase

Enclosure: Nema 12

Controls: UL Listed

Bale Tying: Steel Banding or Wire

Bale Ejection: Dual Hydraulic/Chain

Conveyor

Belt Width: Available at 24″ or 36″

Belt Speed: Variable

Hopper Size: 2 Cubic Yards

Belt: PVC with 3″ Cleats

Motor: Hydraulic Dual Chain

Emergency Stop: Standard

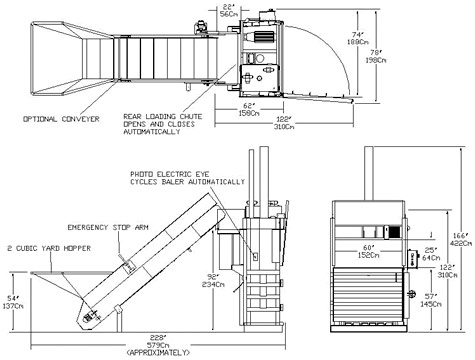

Loading Door Opening: 25″x 60″ (64cm x 152cm)

Loading Door Height from Floor: 57″ (145cm)

Overall Height: 166″ (422cm)

Overall Depth: 228″ (579cm)

Overall Width (Power Unit on the Left Side): 74″ (188cm)

Depth with Door Open: 288″ (732cm)

Width with Door Open: 78″ (198cm)

Shipping Height: 117″ (297cm)

Shipping Height on Side: 74″ (188 cm)

Actual Weight: 8,825 Pounds (4,003 Kg)

Required Operating Area: 190 Sq. Ft. (17.7 Sq. M.)
